Statistical analysis of ceramic PCB application fields
The market environment for ceramic substrates is relatively better this year, and the market demand continues to increase. The main reason is that the technology of ceramic substrates is becoming more and more mature, and the performance of ceramic PCB products is better, and the cost is also lower than that of previous years. Today I want to share the five major areas and reasons for the application of ceramic substrates PCB.
1. High-power power semiconductor modules; semiconductor refrigerators, electronic heaters; power control circuits, power hybrid circuits.
2. Intelligent power components; high frequency switching power supply, solid state relay.
3. Automotive electronics, aerospace and military electronic components.
4. Solar panel components; telecommunications special switches, receiving systems; industrial electronics such as lasers.
5. LED high-power lighting.

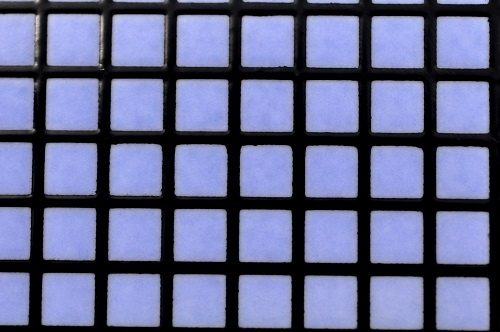

Ceramic substrate Circuit Boards
Ceramic substrate circuit boards in the above application fields are very popular, mainly determined by the performance of ceramic substrates. The most important thing about ceramic substrates is good heat dissipation performance. The following points elaborate on the advantages of ceramic substrates:
1. The thermal expansion coefficient of the ceramic substrate is close to that of the silicon chip, which can save the Mo sheet of the transition layer, save labor, save materials and reduce costs.
2. Excellent thermal conductivity makes the package of the chip very compact, thus greatly increasing the power density and improving the reliability of the system and device.
3. Large carrying capacity, 100A current continuously passes through a 1mm wide and 0.3mm thick copper body, and the temperature rise is about 17°C; 100A current continuously passes through a 2mm wide and 0.3mm thick copper body, the temperature rise is only about 5°C.
4. High insulation withstand voltage, ensuring personal safety and equipment protection.
5. Low thermal resistance, the thermal resistance of 10×10mm ceramic substrate is 0.31K/W for 0.63mm thick ceramic substrate, 0.19K/W for 0.38mm thick ceramic substrate, and 0.25mm thick ceramic substrate The thermal resistance is 0.14K/W.
